Protect3 Safety Glass – Fire, Safety & Security from Carleton Place
Protect3 offers fire, safety, and security protection in a single product — a code-compliant, cost-effective alternative to Georgian polished wire glass (GPW). Raw Glass Inc is a UL-certified cutting and labeling station for Protect3, guaranteeing every piece is properly labeled and ready for building code inspection.
What is Protect3™️
Protect3 is a ¼” (6mm) thick glazing material consisting of fire-rated wire glass with a surface-applied fire-rated and impact-safety rated film. It’s UL classified and labeled for fire ratings up to 90 minutes with hose stream, and meets impact-safety ratings under ANSI Z97.1 and CPSC 16CFR1201 (Cat. I and II). Protect3 is a strong fit for high-traffic areas requiring fire-rated glazing in schools, hospitals, institutions, and commercial buildings.
Typical Applications

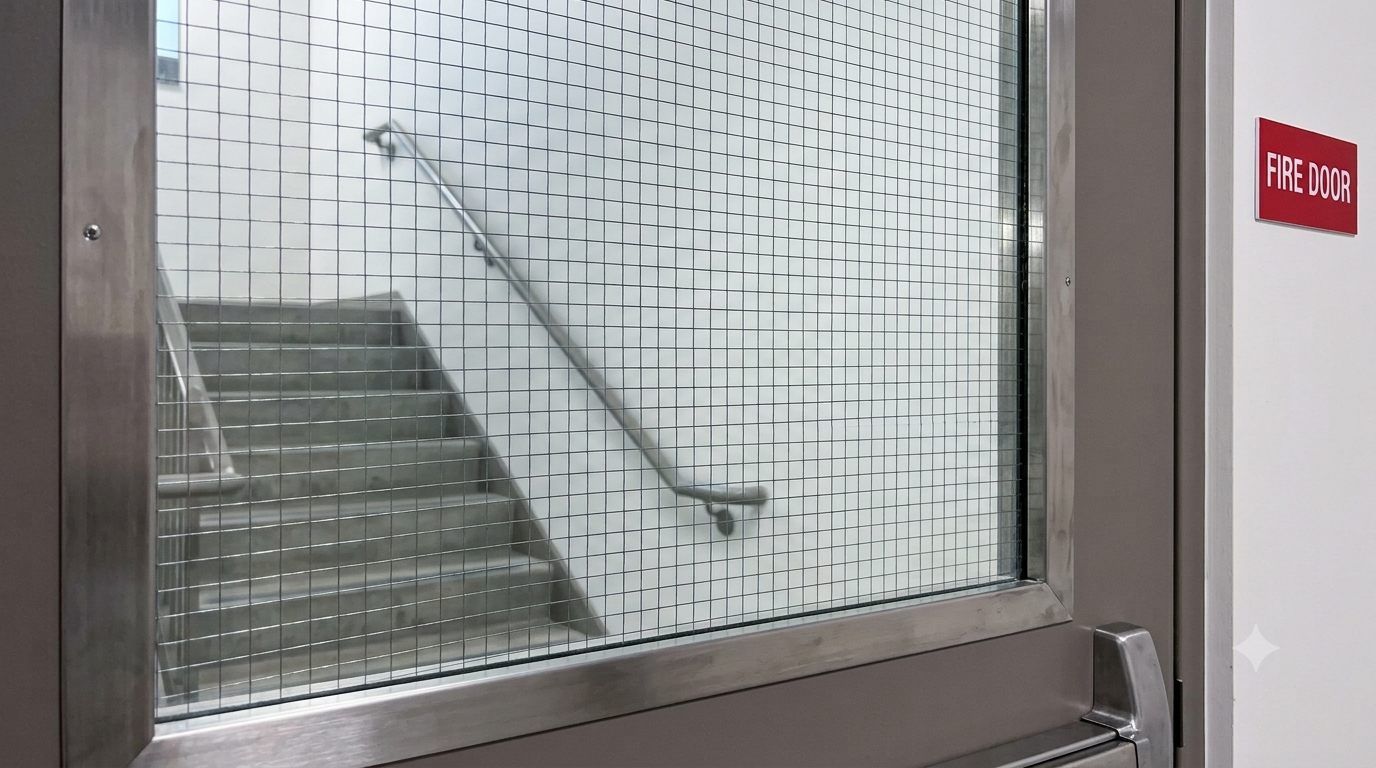

- Fire-rated doors and sidelites.
- Transoms and borrowed lites.
- Schools and hospitals.
- High-traffic commercial and institutional entryways
Triple Protection
Fire-Rated
- Fire-rated up to 90 minutes with hose stream
- UL classified and UL labeled
Impact-Safety Rated
- Rated to ANSI Z97.1 and CPSC 16CFR1201 Cat. I & II
- Meets building code requirements for high-traffic locations
Security
Fire & Safety Rated Glass (laminated)
- Passes 400 ft-lb impact tests
- Passes air blast testing (minimum Level 3 at 4.0 PSI)
- Acts as a visual deterrent
Key Specifications
Thickness
Approximately ¼” (6.8mm)
Weight
Approximately 3.6 lbs/ft²
Sizes
available up to 48″ x 96″
UL-certified
Fully tested & approved
Surface
High-quality polished finish
Pattern Options
Diamond or square wire
Ratings & Listings*
*Ratings vary by glazing compound and application — confirm which compound your installer/frame system uses.
Installation & Care
Protect3 must be installed into fire-rated frame and window assemblies carrying the same rating, using the glazing compound specified for your rating (e.g., pure silicone caulk or an approved equivalent). Lites should be inspected for edge or surface damage before installation and handled carefully during transport and storage. Clean with a soft, non-abrasive cloth and mild detergent only.
Get Code-Compliant Protect3 Glass, Cut and Labeled Locally
Contact Raw Glass Inc for a free consultation and estimate on Protect3 safety glass for your project.
Why Choose Protect3 from Raw Glass
Only UL-Certified In Ottawa
Raw Glass labels every piece properly, making it inspection-ready
Best Value
high performance at a lower cost than many fire-rated glass alternatives
Local Stock
fast turnaround with pickup or delivery from Carleton Place shop
Supply-Only or Installed
you can order the glass alone, or have our expert fire-rated glass team install it
Frequently Asked Questions
What makes Protect3 different from standard wire glass?
Standard wire glass alone isn’t rated for the impact-safety standards required in many modern building codes. Protect3 adds a surface-applied fire-rated and impact-safety film to wire glass, meeting both fire and impact-safety requirements in one product.
Where can Protect3 be used?
Protect3 is listed for use in doors, sidelites, transoms, and borrowed lites, and is commonly specified for schools, hospitals, and other high-traffic commercial or institutional buildings.
Can I get Protect3 installed, or only supplied?
Raw Glass Inc offers Protect3 as a supply-only option or as a fully installed solution — let us know which fits your project.
How fast can I get Protect3?
Standard sizes are typically available quickly from local stock. Custom sizes may need additional time — ask your Raw Glass Inc rep for a specific estimate.
